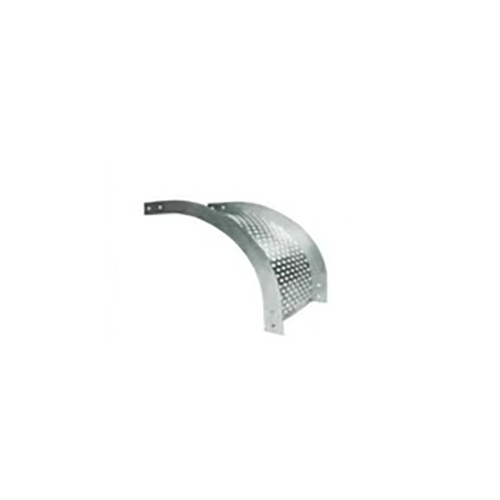

Perforated Cable Tray Outside Riser

Get a Price/Quote

Perforated Cable Tray Outside Riser Specification

Surface Finish
Hot Dip Galvanized, Powder Coated, Painted, or Pre-Galvanized

Deflection
<5mm under max. load

Conductor Material
Other

Max. Working Load
Up to 50kg/m depending on size and material

Product Type
Cable Tray Vertical Bend - Outside

Material
Mild Steel, Stainless Steel, Pre-Galvanized Steel, or Aluminium

Standard Thickness
1.2mm, 1.5mm, 2.0mm, 2.5mm

Length
Standard 300mm to 1200mm, customizable as per order

Width
50mm to 1000mm

Side Rail Height
50mm, 75mm, 100mm, 150mm

Weight
Varies as per dimension and material, approx. 2.5kg - 12kg

Dimension (L*W*H)
Variable, e.g., 600mm x 200mm x 100mm

Color
Silver (Galvanized), Grey, or as per customer specification

Connection Type
Bolted with coupler plates

Operating Temperature
-20C to +100C

Bending Angle
Typically available in 30, 45, 60, 90 or custom angles

Edge Protection
Deburred and rounded edges for cable safety

Compliance Standards
IS 8623, IEC 61537

Accessories Provided
Fixing nuts, bolts, washers if required

Mounting Type
Wall Mounted / Ceiling Suspended / Floor Supported

Application
Used for upward or downward direction changes of cable routes in industrial and commercial installations

Corrosion Resistance
High (when Hot Dip Galvanized or Stainless Steel)

About Perforated Cable Tray Outside Riser

Experience the paragon of cable management with our Vertical Bend Outside-famed in the industry for its remarkable durability and versatility. Fully customizable for length, width, thickness, and bending angle (including typical 30, 45, 60, and 90 or bespoke options), this product is crafted from quality Mild Steel, Stainless Steel, Pre-Galvanized Steel, or Aluminium. With IS 8623 and IEC 61537 compliance, premium edge protection, and corrosion resistance, it's perfect for reliable direction changes in any commercial or industrial installation. Try now and enjoy a notable price cut!

Versatile Vertical Bend Outside-For Any Installation Need

Vertical Bend Outside is engineered for upward or downward routing of cables in industrial and commercial environments. Its adaptable mounting options-wall, ceiling, or floor-make it suitable for any installation space. Supported by robust edge protection and optional accessories, it ensures cable safety during application. Special features include customizable lengths, angles, and finishes to seamlessly integrate into any project, making it a must-have for modern cable management challenges.

FOB Port, Supply Capacity & Certification-Lowest Price Offer!

Vertical Bend Outside is shipped FOB from India's leading industrial ports, offering both domestic and export solutions. We maintain substantial supply ability to timely fulfill even large-scale orders with remarkable consistency. Each unit is certified to renowned standards such as IS 8623 and IEC 61537, ensuring top-tier quality. Take advantage of our lowest price offer or inquire for a custom asking price-backed by prompt delivery and trusted certification for peace of mind.

FAQ's of Vertical Bend Outside:

Q: How can I customize the Vertical Bend Outside to match my project specifications?

A: You can specify preferred length, width, thickness, and bending angle. Additionally, materials and surface finishes are customizable, ensuring the product aligns precisely with your installation needs.

Q: What application areas are best suited for the Vertical Bend Outside?

A: This product is ideal for upward or downward cable routing changes in both industrial and commercial settings, enabling safe and organized cable management in complex layouts.

Q: When should I use a hot dip galvanized or stainless steel version?

A: Opt for hot dip galvanized or stainless steel variations when high corrosion resistance is required, such as in outdoor, humid, or corrosive environments.

Q: Where is the Vertical Bend Outside typically installed within a facility?

A: It can be wall-mounted, ceiling-suspended, or floor-supported, making it versatile for various facility zones depending on routing and spatial constraints.

Q: What is the process for placing a bulk supply order and requesting price offers?

A: Simply contact our sales team with your project details and quantity. We'll provide a tailored quotation, competitive asking price, and coordinate shipping directly from our FOB port in India.
